High Torque Radial Piston Motors Dual and Variable Displacement
| Propulsion and Timing System: |
Fluid Column Technology® / Balanced Forces Concept |
| Construction and Mounting MRD: |
Dual Displacement, 8 frame sizes, flange |
| Construction and Mounting MRV: |
Variable Displacement, 7 frame sizes, flange, shrink disk |
| Displacements and Torque MRD: |
16 from 300 cm3/rev to 8.200 cm3/rev,
up to 32.000 Nm (23.600 lbf·ft)
|
| Displacements and Torque MRV: |
13 from 450 cm3/rev to 8.200 cm3/rev,
up to 32.000 Nm (23.600 lbf·ft)
|
| Temperature range: |
-30 to +80 °C (-22° to +176° F) |
| Direction of rotation: |
Reversible (clockwise / counterclockwise) |
| Operation type: |
Reversible (motor and pump) |
| Optional: |
Gearboxes, parking brakes, built-on manifold blocks
(cross relief, anti-cavitation, flushing and drain valves),
customization by selecting different types of shafts,
speed sensors, seals, and connection flanges.
|

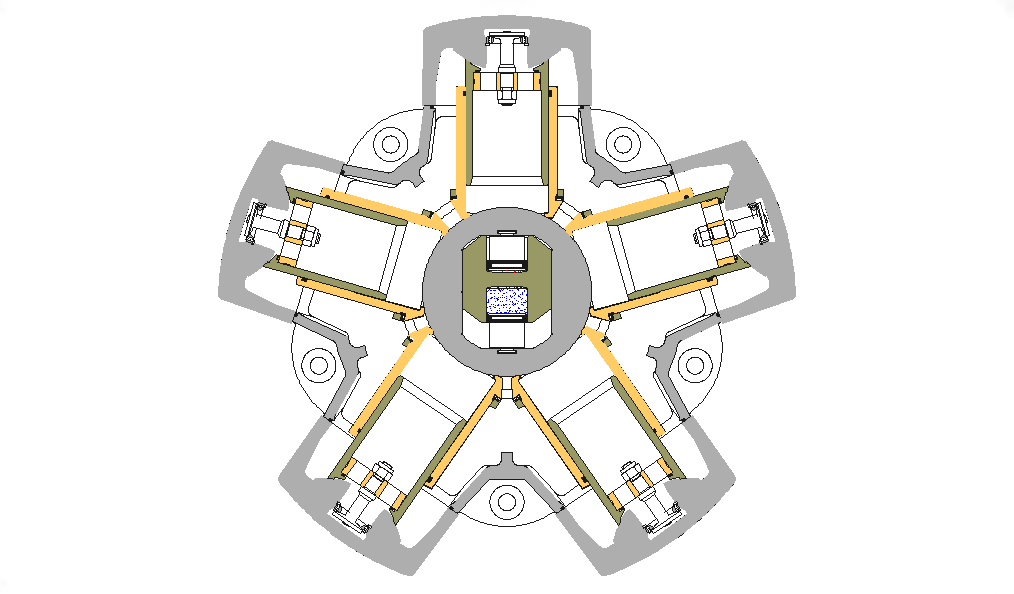

The dual/variable displacement function is accomplished by having the eccentric cam free to move radially, changing its eccentricity and consequently the motor’s displacement. Hydraulic cylinders located in the drive shaft are used to control the radial movement of the cam, commanding the displacement change. In MRV series an additional valve allows the step-by-step movement of the piloting cylinders, granting fully variable operation.
